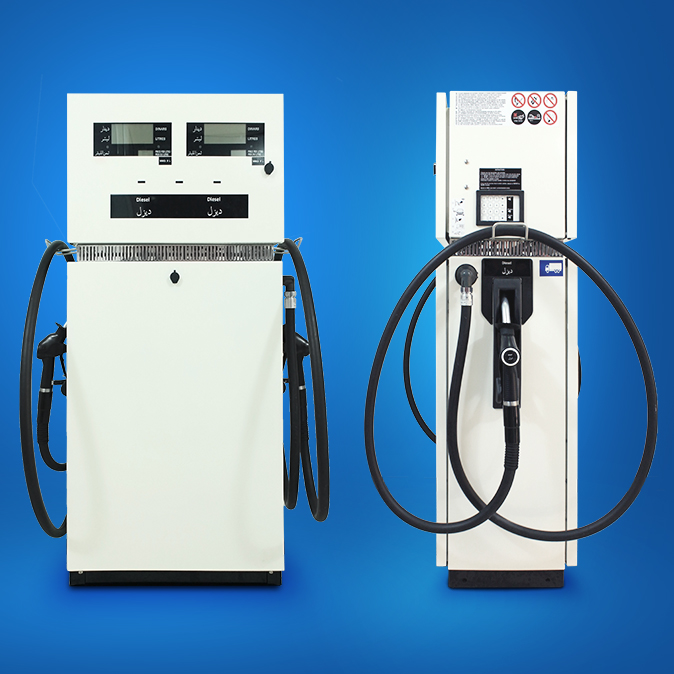

Quantium 210

Base models

  • Standard speed (40 l/min)
  • High speed (80 l/min)
  • Very high speed (130 l/min)
  • Debowser configuration

Flow rates depend on model, underground site layout, site altitude, ambient temperature and selected options.

Optional features

  • Electronically Controlled vapor recovery (ECVR)
  • patented Self-Calibrating vapor recovery system – ECVR-SCS (including both monitoring and Self-Calibrating System)
  • Several vapor recovery ground connections
  • Vapor recovery status LED
  • Automatic temperature compensation
  • Electronic calibration
  • Electromechanical totalizers
  • Programming switch
  • Single-phase motor
  • Preset functions via push buttons or keypad
  • Product indication lights
  • IR remote control compatible
  • Mechanical totalizers on meter
  • Anti-magnetic electro-mechanical totalizers (single and double-sided)
  • Payment terminal
  • Wide range of nozzles
  • 40/80 l/min speed selection
  • Several hydraulic inlet options
  • Submerged
  • Ground frame
  • Sight glass
  • Breakaway coupling
  • Low temperature kit
  • Leak plate
  • Marina prepared
  • Stainless steel cladding panels
  • Customized livery of complete dispenser
  • Fuel theft prevention
    For more detailed information on available options, please contact us.

Environmental conditions

  • Ambient temperature: -25°C to +55°C
  • Cold climate: -40°C to +55°C (optional)
  • Temperature of fluid: -25°C to +25°C
  • Viscosity of fluid: < 10-4 m2/s
  • Relative humidity: 5% to 95%
  • Altitude: from sea level to 2,000
