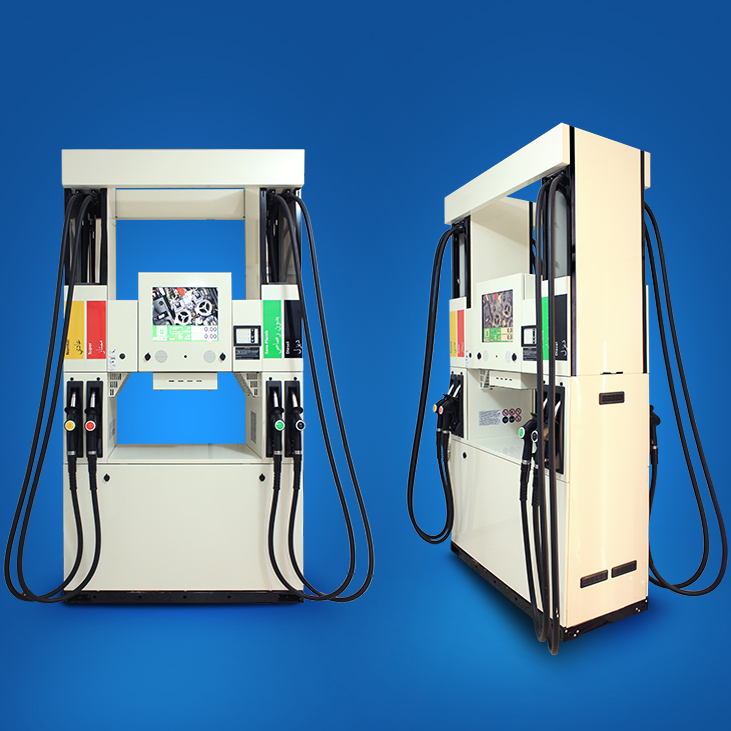

Quantium 410

Base models:

  • Standard speed (40 l/min)
  • Medium speed (80 l/min)
  • High speed (130 l/min)
  • Satellite models
  • Double-sided and single-sided models
  • Combined standard speed-high speed
  • Combined standard speed-very high speed
  • Lifting slots solution for a safer installation
  • Multimedia terminal with 17″ VGA screen
  • Flow rates depend on model, underground site layout, site altitude, ambient temperature and selected options.

Options

  • Electronically Controlled vapor recovery (ECVR)
  • patented Self-Calibrating vapor recovery system – ECVR-SCS (including both monitoring and self-Calibrating System)
  • Several vapor recovery ground connections
  • Automatic temperature compensation
  • Electronic calibration
  • Emergency stop button
  • Main’s safety switch
  • Low temperature kit
  • Programming switch
  • Single-phase motor
  • Preset functions via push buttons or keypad
  • Unit price display per product
  • Product indication lights
  • Speaker (one way sound)
  • IR remote control compatible
  • Ethernet Switch Connection
  • SD Card for calculator data back-up
  • Mechanical totalizers on meter
  • Anti-magnetic electro-mechanical totalizers

(Single and double-sided)

  • Wide range of nozzles
  • 40/80 l/min speed selection
  • External filter pot for TQP-RS pump
  • Several hydraulic inlets option
  • Additional water filter
  • Leak plate
  • Wide range of stainless-steel flexible connections for easy installation (single- or double-sided configuration)
  • Submersible pump
  • Ground frame
  • Sight glass
  • Satellite connection (single or double sided)
  • Breakaway fitting
  • Low temperature kit
    • Payment-integrated solutions for a wide range
    of markets
    • Narrow canopy
    • Wafer stainless steel hydraulic top cover
    • various stainless steel cladding solutions
    • Customized livery of complete dispenser
    • Fire and tilt detection
    • Media head with 17’’ VGA screen
    • Fuel theft prevention
    For more detailed information on available options, please contact us.
    Environmental conditions
    • Ambient temperature: -25°C to +55°C
    • Cold climate: -40°C to +55°C (optional)
    • Temperature of fluid: -25°C to +25°C
    • Viscosity of fluid: < 10-4 m2/s
    • Relative humidity: 5% to 95%
    • Altitude: from sea level to 2,000 m
