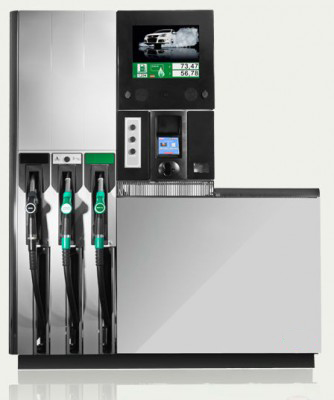

Quantium 510

Base models

  • Standard speed (40 l/min)
  • Medium speed (80 l/min)
  • High speed (130 l/min)
  • Satellite models
  • Double-sided and single-sided models
  • Combined standard speed-high speed
  • Lifting slots solution for a safer installation
  • External filter box for TQP-RS pump.
  • Standard on TQC calculator: Ethernet connection
  • Standard on TQC: SD card for calculator data backup

Optional features

  • Electronically Controlled Vapor Recovery (ECVR) solution
  • patented Self-Calibrating vapor recovery system (ECVR-SCS) (including both monitoring and Self-Calibrating System)
  • Several vapor recover ground connections
  • Automatic temperature compensation
  • Electronic calibration
  • Main’s safety switch
  • Emergency stop button
  • Programming switch
  • Single-phase motor
  • Preset functions via push buttons
  • Unit price display per product
  • Product indication lights
  • Outdoor Payment Terminal lamps
  • Speaker (one way sound)
  • IR remote control compatible
  • Mechanical totalizers on meter
  • Anti-magnetic electro-mechanical totalizers
  • Wide range of nozzles
  • 40/80 l/min speed selection
  • Several hydraulic inlets option
  • Submersible pump
  • Wide range of stainless-steel flexible connections to ease installation (single

And double-sided)

  • Ground frame
  • Sight glass
  • Satellite connection (single or double sided)
  • Breakaway fittings
  • Low temperature kit
  • Payment-integrated solutions for a wide range of markets
  • Wafer stainless steel hydraulic top cover
  • Various stainless steel cladding solutions
  • Customized livery of complete dispenser
  • Fire and tilt detection
  • VGA media & payment display unit (17inch display)
  • Fuel theft prevention

For more detailed information on available options, please contact us.

Environmental conditions

  • Ambient temperature: -25°C to +55°C
  • Cold climate: -40°C to +55°C (optional)
  • Temperature of fluid: -25°C to +25°C
  • Viscosity of fluid: < 10-4 m2/s
  • Relative humidity: 5% to 95%
  • Altitude: from sea level to 2,000 m
